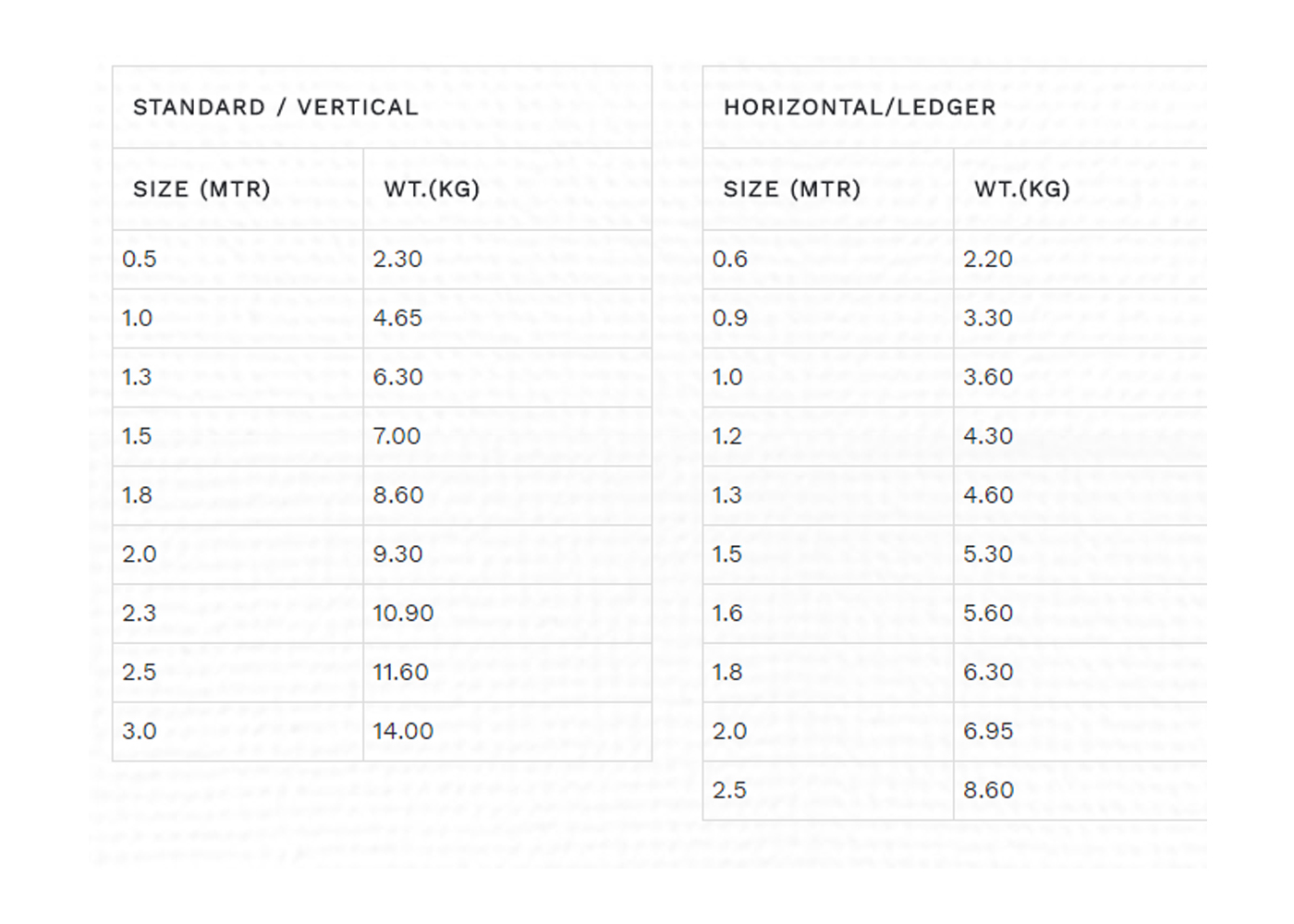

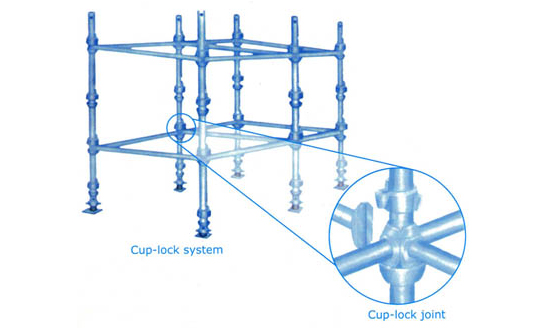

Cup Lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups Top & Bottom Cup. Single node point action of unique locking make Cup lock a fast, versatile and optimized systems of scaffolding.

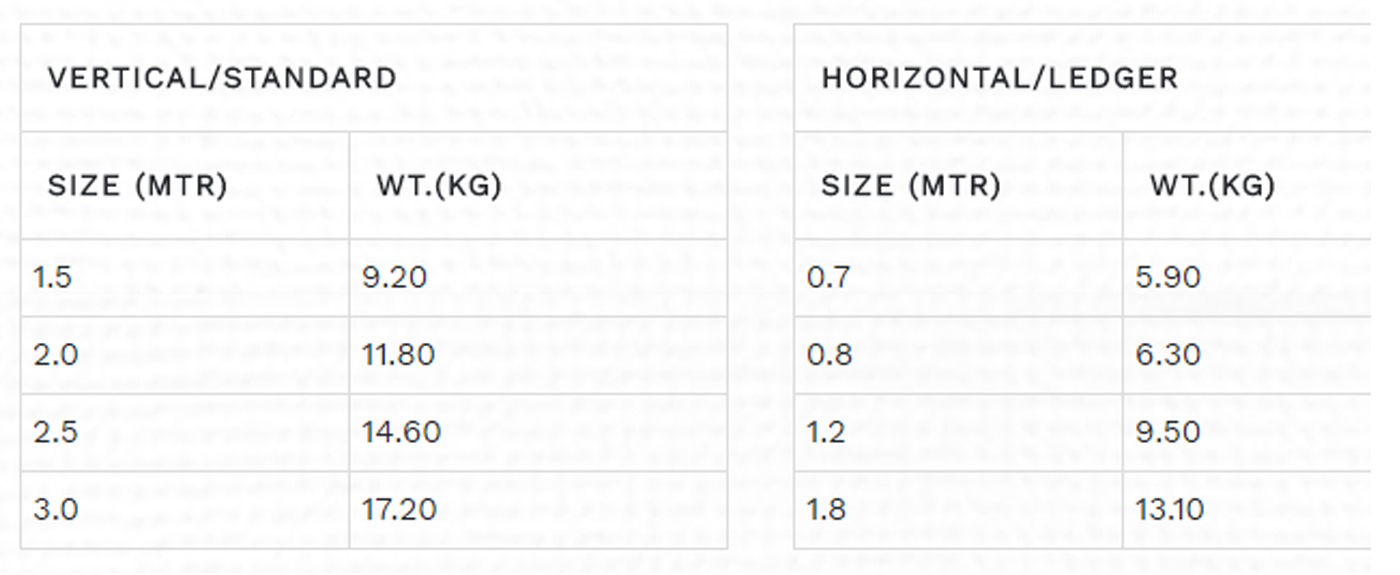

Quick Lock Scaffolding System Include Parts and Components of Vertical Leg Post and Horizontals. It is a type of quick erect scaffolding System. Both Quick Lock Scaffold Vertical Legs and Horizontals are made from OD48.3mm Scaffold Tube. While, Leg Post with Disc Rings at every 600mm distance and Horizontal Has cast ledger ends, which is able to be inserted directly into the disco on vertical post? Quick lock scaffolding is popular used as slab formwork and shuttering support in construction and concreting. It is convenient to compatible with all parts and beams,accessories during concrete forming.

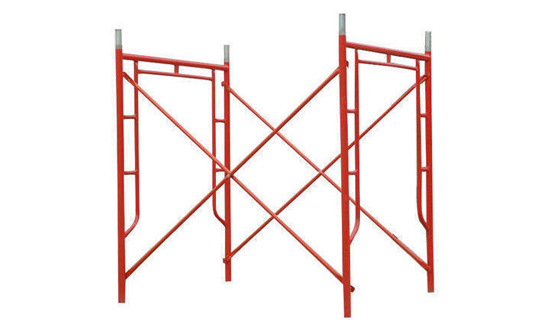

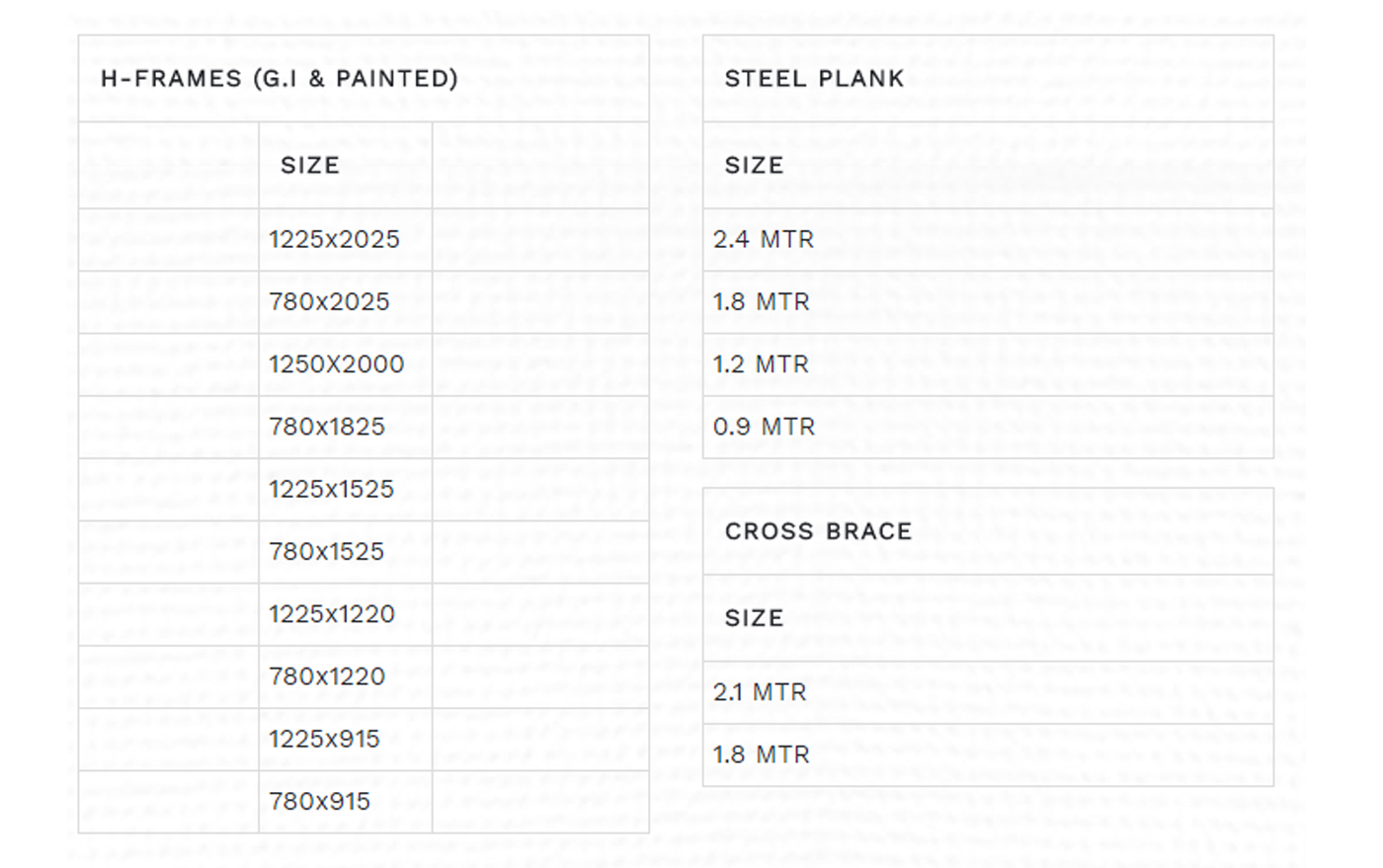

The combination of H-Frame and Scissor Cross Bracing can be used as staging for floor slabs at more heights of commercial industrial buildings and also for Staging of Bridges, Flyover and Many more usage of Construction. Procured from the most reliable vendors of the market, we have Rental supplying Scaffolding (H-Frame) / Materials. Our product range is fabricated using high-quality material and is available in various sizes. H-frames are the efficient and cost effective method for erecting scaffolding at maximum height with minimum labour and tools. By utilizing one size or a combination of varying sizes of H-Frames, towers or an array can be erected to the exact height required for the job. This rigid way free structure has no loose fittings and no tools are required for erection. If can be quickly and easily erected even by unskilled labour without any supervision.

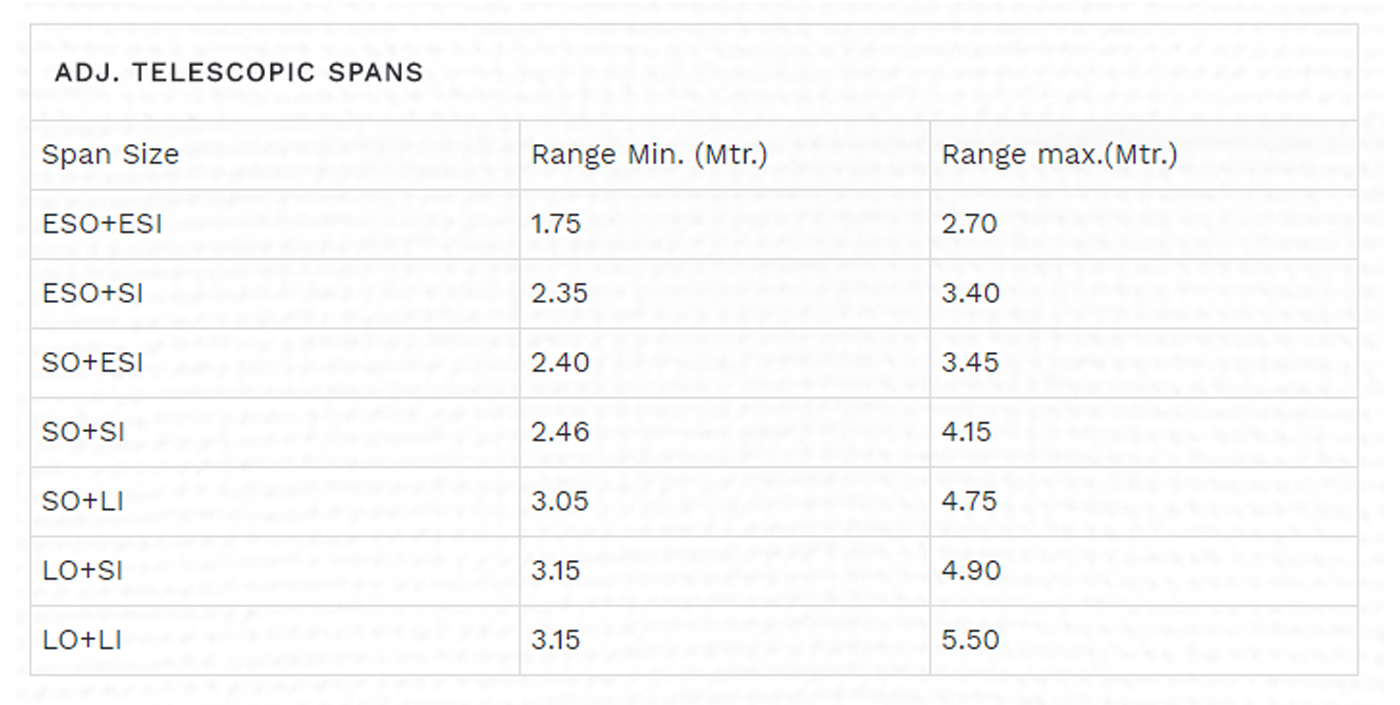

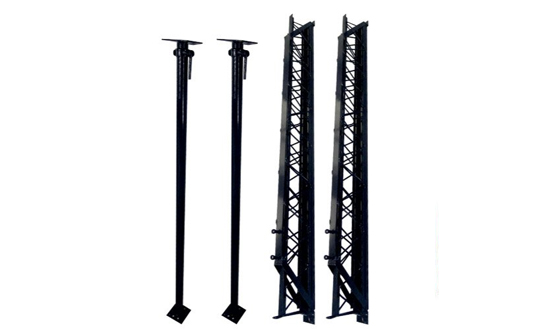

We are one of the reckoned names affianced in imparting the optimum quality of Adjustable Telescopic Spans at the clients end. These telescopic spans are precisely engineered using the top notch quality of raw materials source from the authentic vendors of the market. We are Supplying Telescopic Span to our clients SPANS are the most advanced telescopic centring systems that basically used to support floor forms while laying slabs. These versatile systems can easily be used and erected by all. It virtually eliminates vertical propping and permits free space under the spans. High level economy and performance can be achieved by the use of adjustable beam spans in conjunction scaffolding components of a construction scaffold, providing support to the overall structure. They can be adjusted as per the need and are basically used to support floor forms while laying slabs.

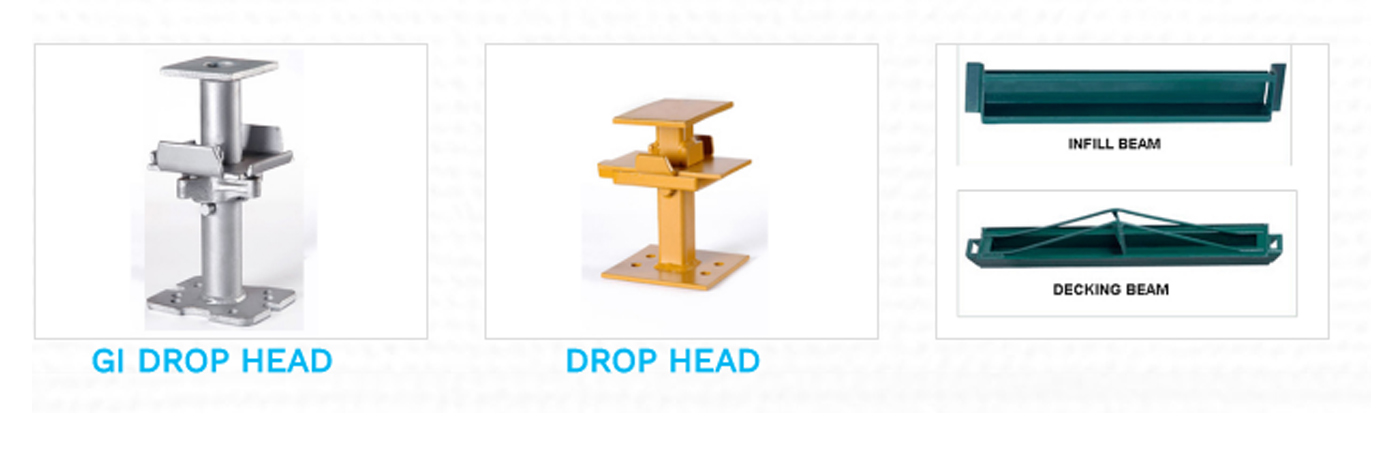

Quick strip system is the Latest form work system for the construction of RCC floors. This system with the help of a component called DROP HEAD enables de-shuttering after 3 day's of concreting, leaving supports undisturbed helots floor (Refer IS : 456),. Moreover with limited no of components and minimal erection/dismantling time makes this system cost effective. This system can he used with cup lock, h- frames at props. Quick Strip beams are Available in standard lengths of 2.5m, 1.8m. and 1.2 m.

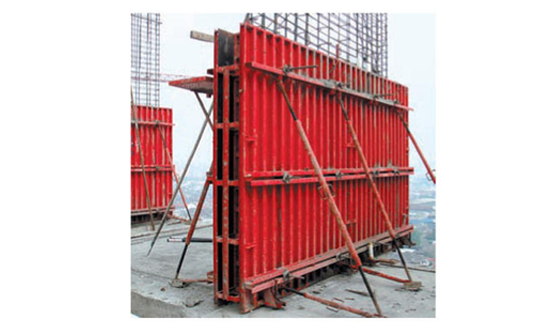

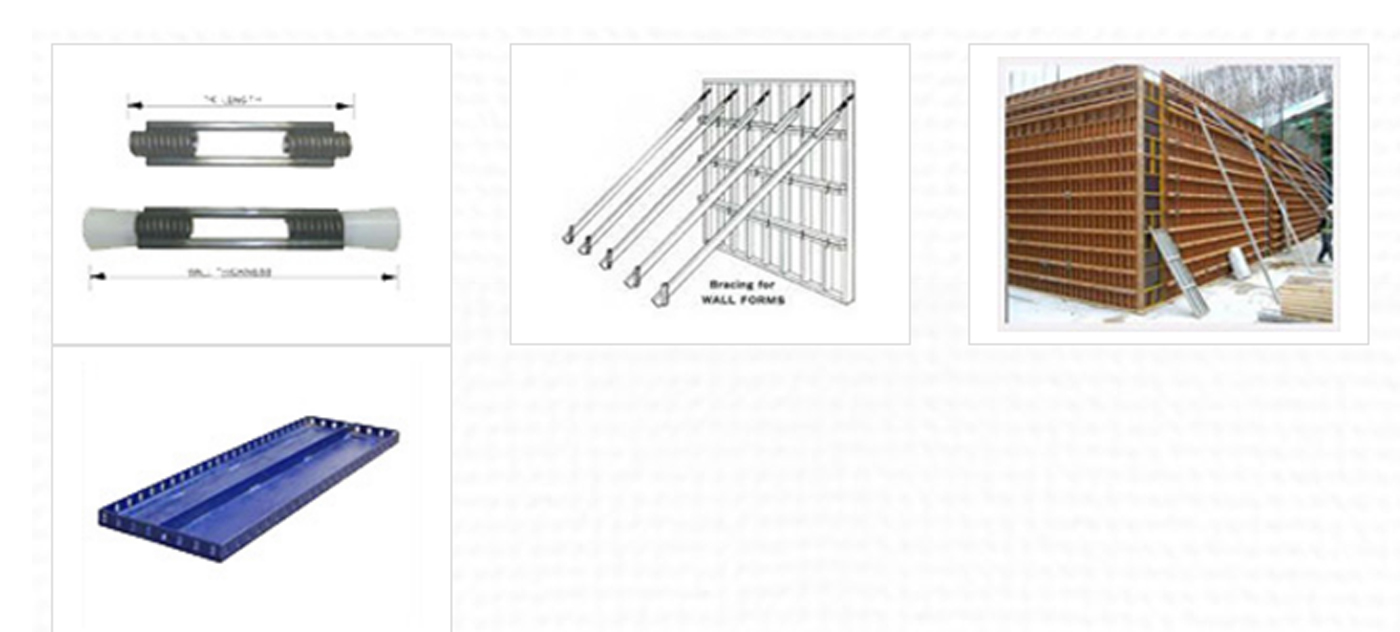

Wall form steel shuttering comprises of steel Panels manufactured out of 12 gauge M.S. Sheets math slotted 45 s 4 x 5 or 45 x 3h x 5 angle/ M.S. Flat Frame and stiffener channel or heavy duty soldiers, Tubes or Channels wailers. All these components are assembled together by Single clip, Bridge Clip, Assembly Bolt/ Wedge and Clip. Soldiers are supplied in 23 m and panels in 1.25 m heights
Being the leading names in industry we are manufacturing, trading, supplying and providing service of an extensive range of Wall Form Shuttering. Our products can be availed at market leading prices.

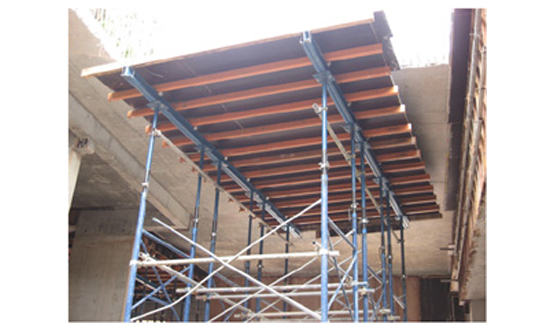

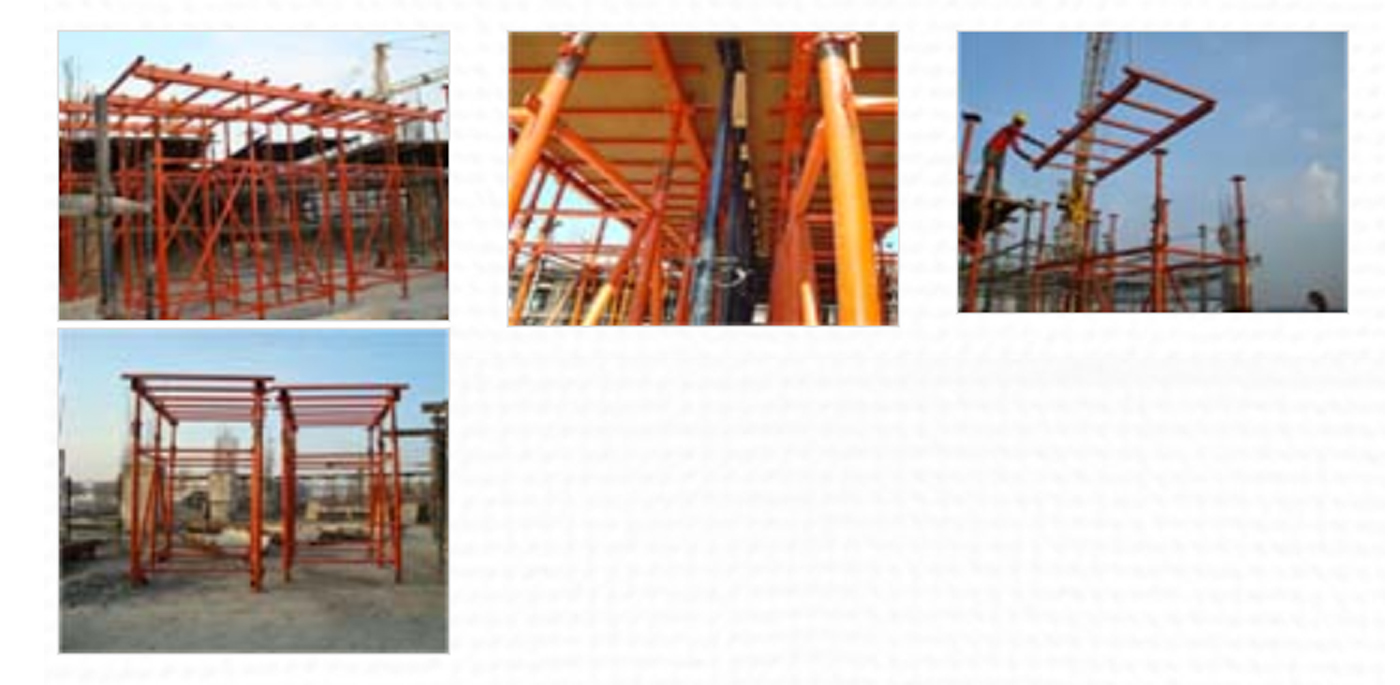

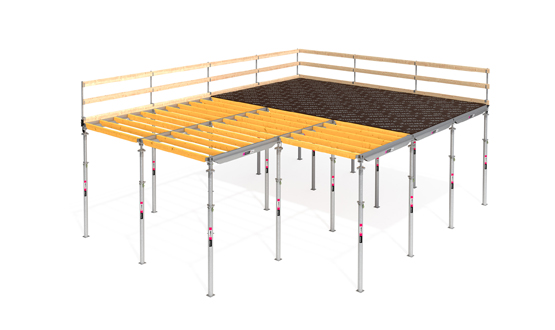

Table Formwork is a kind of Formwork specializing in floor concreting and it is widely used in high building and skyscraper, multilayer industrial factory building, substructure, etc. According to the demand, table Formwork can be used with bulk Formwork. The Table Formwork has simple structure, it is easy to assemble and disassemble and can be reusable. It can use the special cradle to lift table Formwork which quickens construction speed sharply and saves the devotion of the labour force.

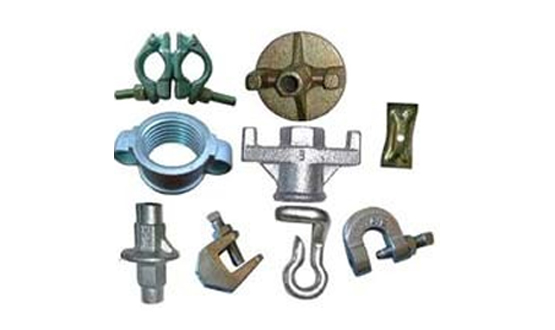

We are offering industrial fasteners including spring washers, metal nuts, spring washers, metal bolts, hex nut, weld nut, castle nut, square nut, dome nut, nylock nut & wing nut.
Floor Forms are widely used for casting of floor slabs and other construction applications which gives concrete finish.

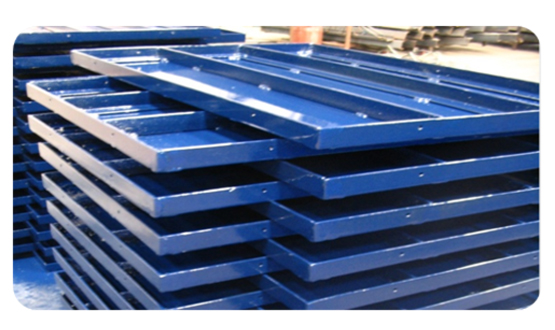

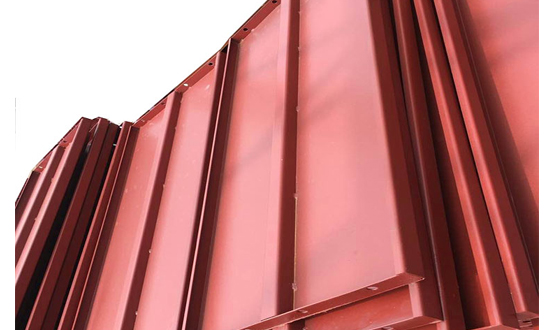

Floor Forms commonly known as Centering Plates, are manufactured out of 2mm (14 swg.) sheets with pressed flanges and stiffeners that maintain edges even after considerable number of uses. The corners are reinforced to further extend the life of the forms.
Standard Floor Forms are made in 600 mm widths and 1150 and 900 mm lengths. They can also be manufactured in thickness of 2.5 mm (12 swg.) and 10 mm (10 swg.) for use in bridges and industrial building constructions.
Shuttering plates / Centering plates are made using best quality metals and is basically used for supporting items for building construction slab, canopy, Beam, Lintel for R.C.C construction work that can replace the wooden plates.
The Shuttering Plates we are providing considered to be one of the finest that are available in the market. Their sturdy construction, high durability and superior resistance to corrosion make them one of the primary preferences in the market.
